Connect to your data

Create a connection​

To create a workflow in which you read from or write to an external data source, you must first create a connection.

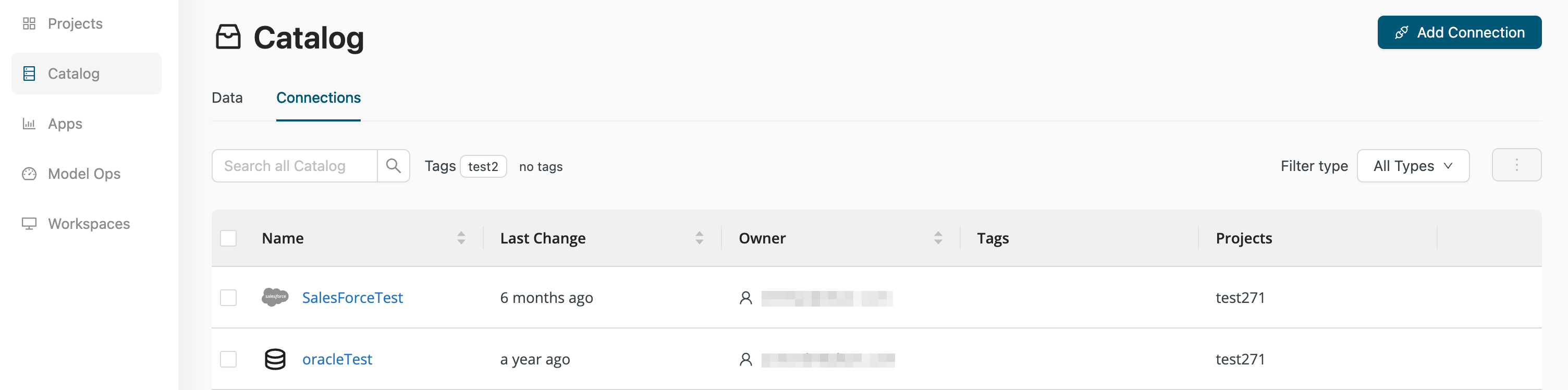

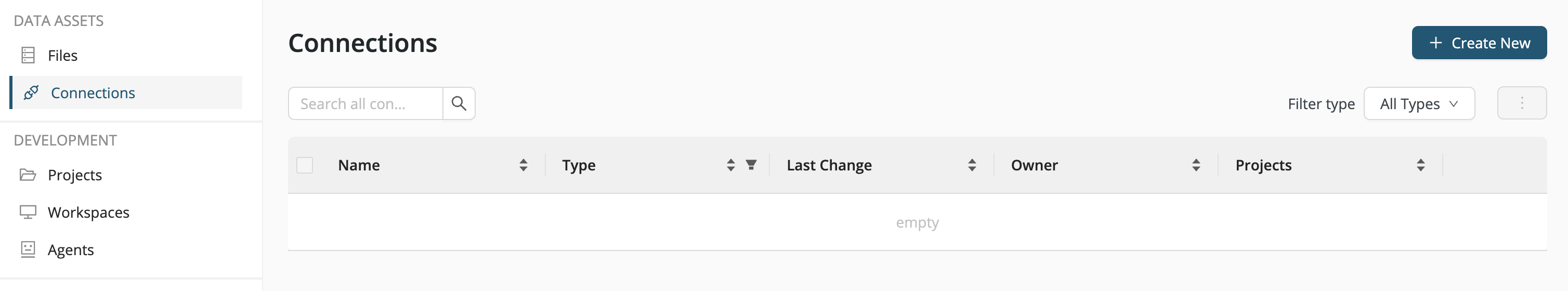

You can create a connection either from the data catalog:

Add connection from project

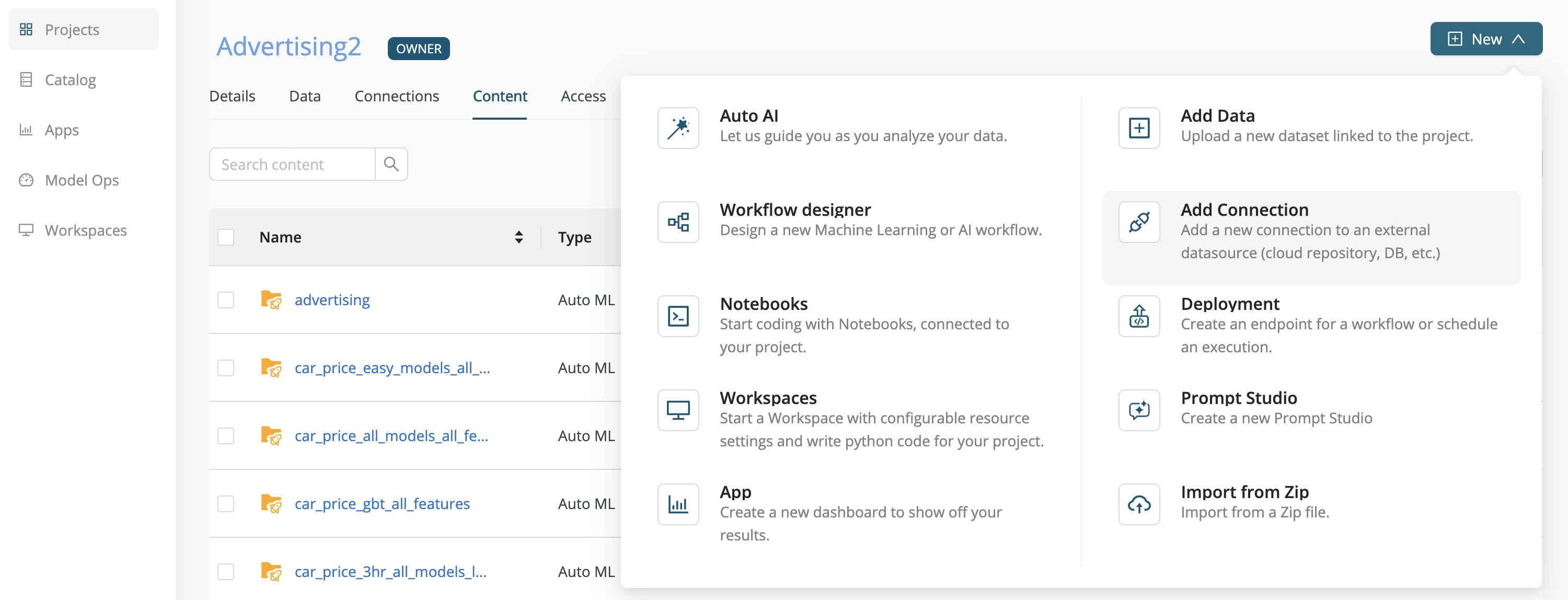

or from a project:

Add connection from project

In either case, select Add Connection, and choose one of the alternatives provided by the dialog.

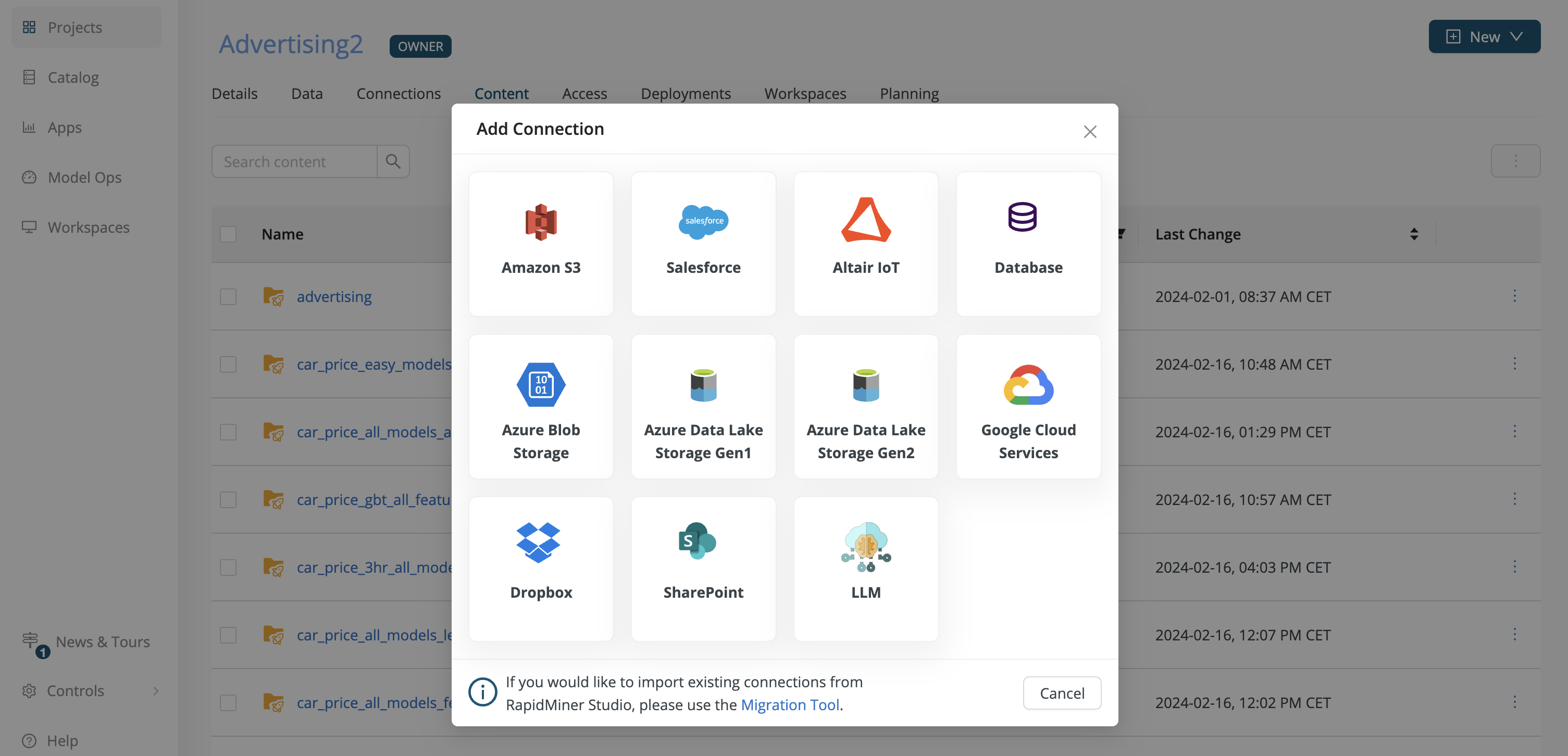

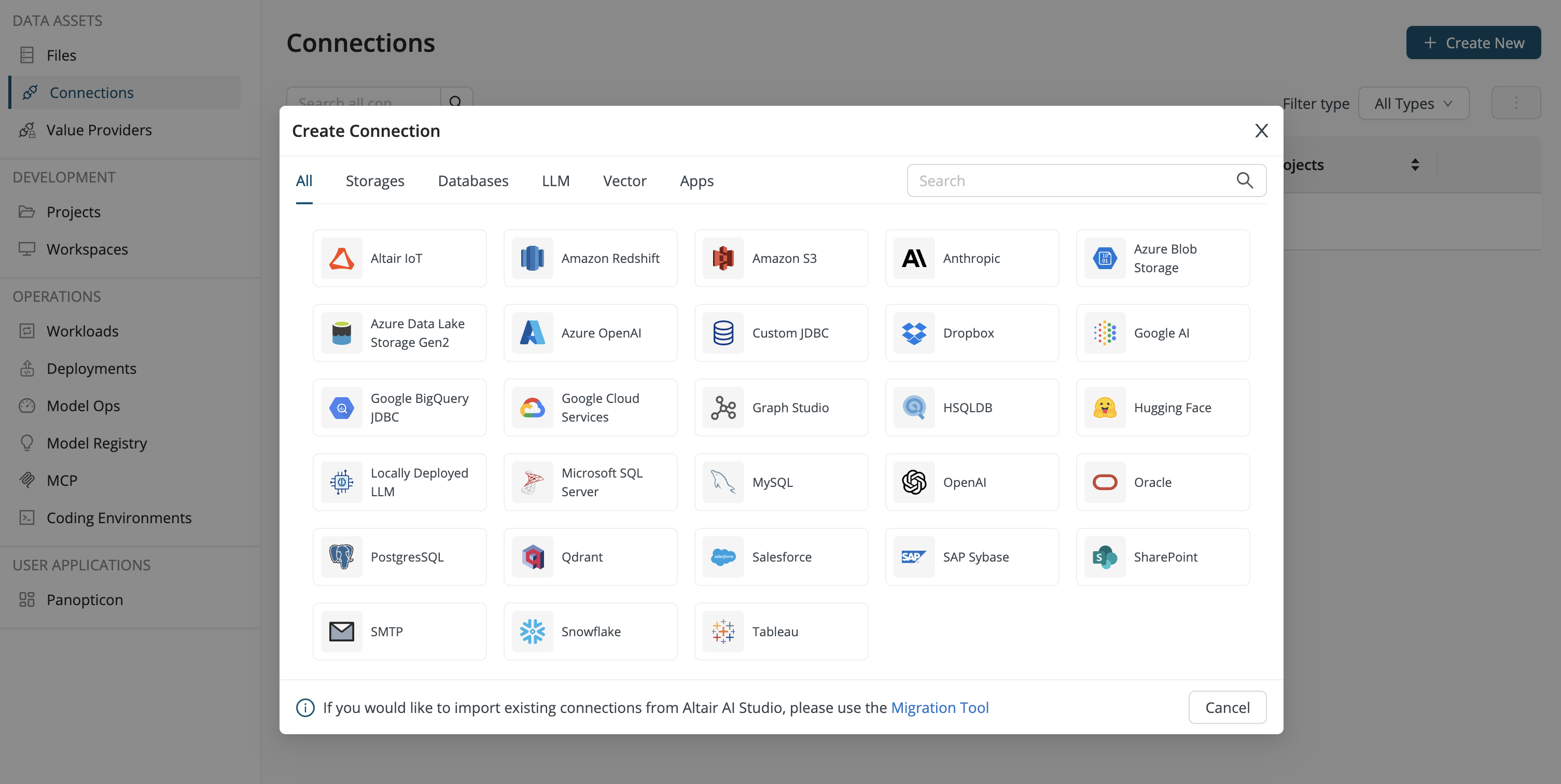

Add connection dialog

If your external data source (external to Altair AI Cloud) lives inside an internal network (e.g., your company intranet), you should also read Use a VPN to connect to an internal network.

What is a connection?​

A connection is an object that contains the information you need to connect to a particular external data source. This information may include:

  • keys and secrets for a cloud repository,
  • credentials for a database, or
  • a token for sources based on cloud authentication.

If you want to use data from an external source, you first need to create (or ask your administrator to create) a connection.

Connection Setup

How to use a connection​

Connections can be dragged and dropped into a workflow, and attached to the corresponding read or write operators. The read, write, and loop operators automatically use the connection details to work with the data as if it were local.

Workflow that connects to Azure

Supported data sources​

You can create connections to a variety of data sources, including the following:

This list will grow as we add support for more types.

Use a VPN to connect to an internal network​

info

To configure the VPN, you need to have the admin role.

If there is a need to connect to databases inside internal protected networks, the best option is to configure a VPN that links the Altair AI Cloud network to the internal one.

It works this way:

  1. The customer's tenant administrator configures an OpenVPN network in Altair AI Cloud.

  2. Users configure their database connections to use the VPN.

  3. When a database connection is activated using the VPN, a VPN process is launched, and the connection can read data from the internal database.

  4. Once the workflow is complete, the VPN process is closed.

Configure a database connection to use the VPN​

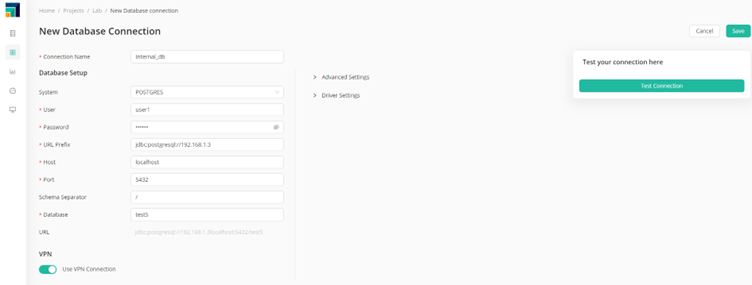

Once the tenant admin has added the VPN configuration, it becomes available to users. When users go to their connections, they will find a new VPN switch.

Connection with VPN switch

The connection will use the VPN once the switch is activated.

How it all works together​

When the user has activated the VPN switch in a connection, then the VPN will be run together with any workflow including that connection.

Take this simple workflow that reads from an internal database, does some ETL, then writes back.

When the workflow is executed, be it within the Designer, using a schedule or a deployment, the container running the workflow will also include what's called a sidecar container (in the Cloud Kubernetes infrastructure). That sidecar container runs the VPN, which connects to the customer's VPN server, allowing connections to the internal databases.

Once the workflow is complete, the VPN client is shut down, which means that the VPN is only kept while strictly necessary.
